ECHO-VT1-BAR-R17-UNF-6PN-S06-F18-TCJ
Related products
Product detailed description
Trusted quality, reliability and precision performance at an affordable price
Now available with an alternative cartridge (NaK)
Echo sensors are designed to meet customer demands and provide a combination of economical values and performance for general extrusion applications while providing ±0.2% repeatability when measuring process pressures. Use the Echo Series sensors when the application requires quality measurements for optimized control, but not the expense of all the other features.

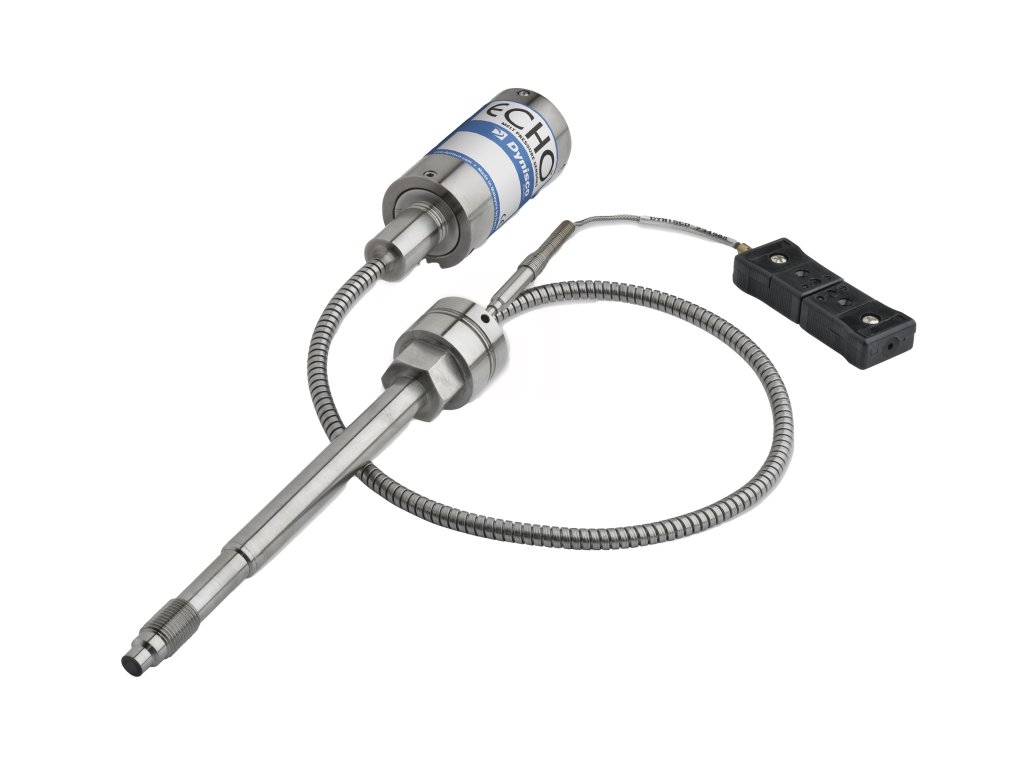

Echo™ Series - Melt Pressure Sensors - Combination Sensors with fixed rod, flexible capillary and temperature sensor
Combined pressure sensors with flexible capillary represent a professional solution suitable for applications with limited space or exposure to radiant heat from heating elements of production lines. Thanks to the thoughtful extended design, the sensor electronics are located away from the radiant heat source, reducing the risk of damage.
These sensors are also equipped with a temperature sensor, and the customer can choose the type of sensor, either J, K type thermocouple or RTD (pt100). By choosing a compatible temperature sensor, the customer also receives information about the melt temperature from one process connection, which increases the efficiency and accuracy of the measurement.
The flexible capillary is designed to be resistant to damage and allow a high degree of bending, which facilitates installation and handling of the sensor. It is necessary to properly fix the sensor head in the attached adapter, which is part of the package. To achieve optimal performance, we recommend placing the adapter on a part of the machine where there are no unwanted vibrations or shocks that could negatively affect the sensor.
Sensors of this series cannot be combined with optional equipment such as coating or special membrane construction.
Additional parameters
| Category: | Pressure Sensors |
|---|---|

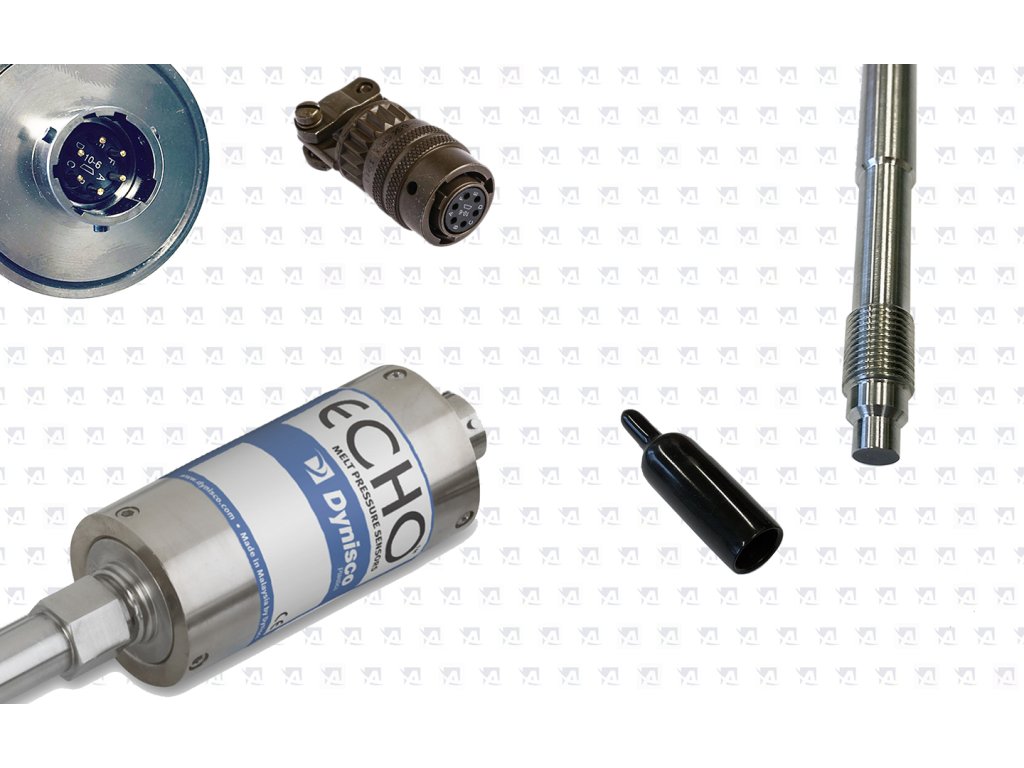

| Process connection: | 1/2-20UNF |
| Sensor connector: | 6 pin konektor |
| Pressure range: | 100 Bar |
| Length of rigid stem: | 15 cm |
| Flexible capillary length: | 46 cm |
| Integrated temperature sensor: | Type J thermocouple with 7cm flexible lead |
| Sensor filling: | Mercury cartridge standard |
| Working units: | Bar |
| Output signal: | 0-10 V |
