MDT462F-1/2-2C-15/76-B171-SIL2

Brand: Dynisco
€0,04

The MDT series signal amplifiers convert process pressure into an amplified signal for interference-free long-distance transmission. All models are available in 4-20 mA, 0-5 VDC and 0-10 VDC, two-, three- and four-wire versions. Many of the features found in the standard Dynisco MDA range have been incorporated into the improved MDT range, including the proven strain gauge sensor design for stable operation, including a flexible capillary design. Including the possibility of internal digital calibration.

All sensors of this series can be configured according to your needs. Contact us, we will be happy to help you.

Detailed information

Dynisco Calibration
Dynisco Calibration
Accredited Calibration ISO 17025
Comprehensive Support
Comprehensive Support
Including Assistance
Over 30 Years in the Market
Over 30 Years in the Market
Throughout Eastern Europe
Service within 48 hours
Service within 48 hours
from reporting the fault

Product detailed description

High accuracy, simple installation, repeatability and reliability

Our pressure sensors offer an efficient, accurate and durable solution for reliable and safe pressure measurement. These sensors are used in a number of industrial areas, where they control and measure melt pressure and ensure the optimal operation of production processes. Due to their resistance to the high temperatures and pressures typical of these applications, they are a suitable choice for a variety of uses. When selecting a sensor, it is important to consider the specific requirements of your application, such as the temperature range, pressure range, and materials with which the sensor will interact. The correct selection of the sensor guarantees reliable and accurate results and a long service life of the device without problems. Installing the sensor in the mounting hole of the production line is simple.
However, if you have doubts about the correct installation, do not hesitate contact our technicians. We are ready to provide support and offer the ideal solution for your application.

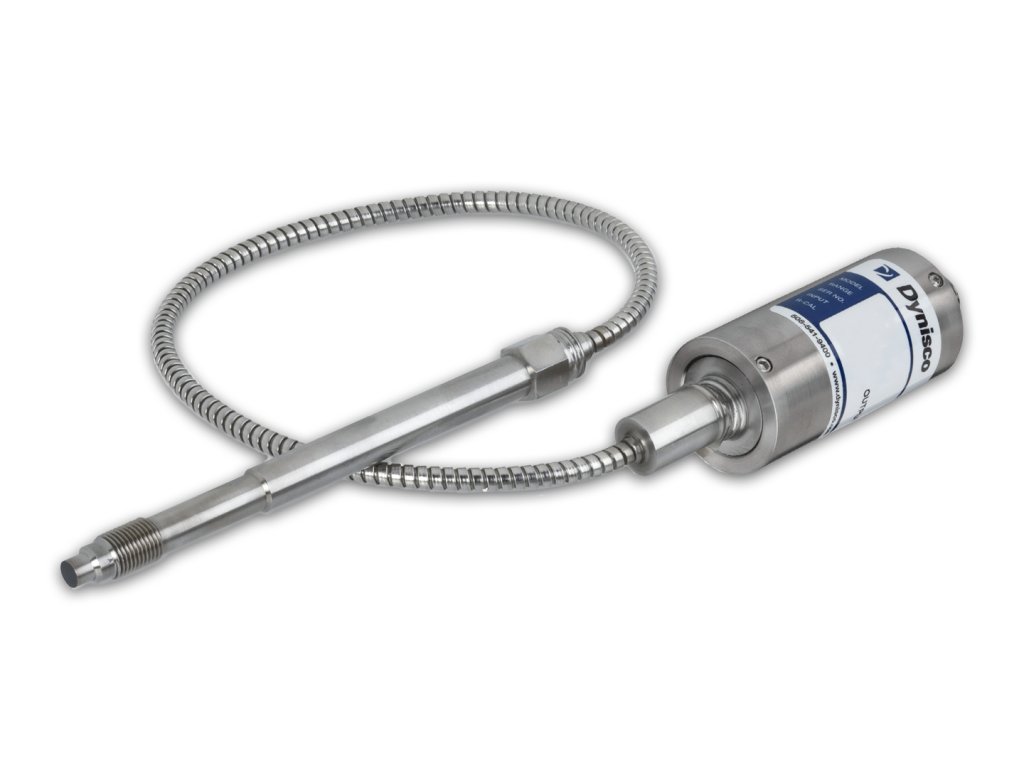

Melt pressure sensors -  With rigid rod and flexible capillary


Pressure sensors with flexible capillary are a professional solution suitable for applications with limited space or exposure to radiant heat from heating elements of production lines. A thoughtful extended design places the sensor electronics out of the reach of the radiant heat source, reducing the risk of damage.

The flexible capillary is designed to be damage resistant and allow for a high degree of bending, making installation and handling easier. sensor. It is necessary to properly fix the sensor head in the attached adapter, which is part of the package. To achieve optimal performance, we recommend placing the adapter on a part of the machine where there are no unwanted vibrations or shocks that could negatively affect the sensor.

The length of the fixed rod and the flexible capillary can be adjusted according to individual needs, as well as other optional components . In this way, maximum flexibility is ensured when integrating the sensor into a wide range of industrial applications.

Additional parameters

Category: Pressure Sensors
Process connection: 1/2-20UNF
Pressure range: 0-17 bar
Length of rigid stem: 15 cm
Flexible capillary length: 76.2 cm
Optional accessories: NaK filling
Output signal: 4-20 mA (2 vodičovy)
Sensor power supply: 10-36 V DC
